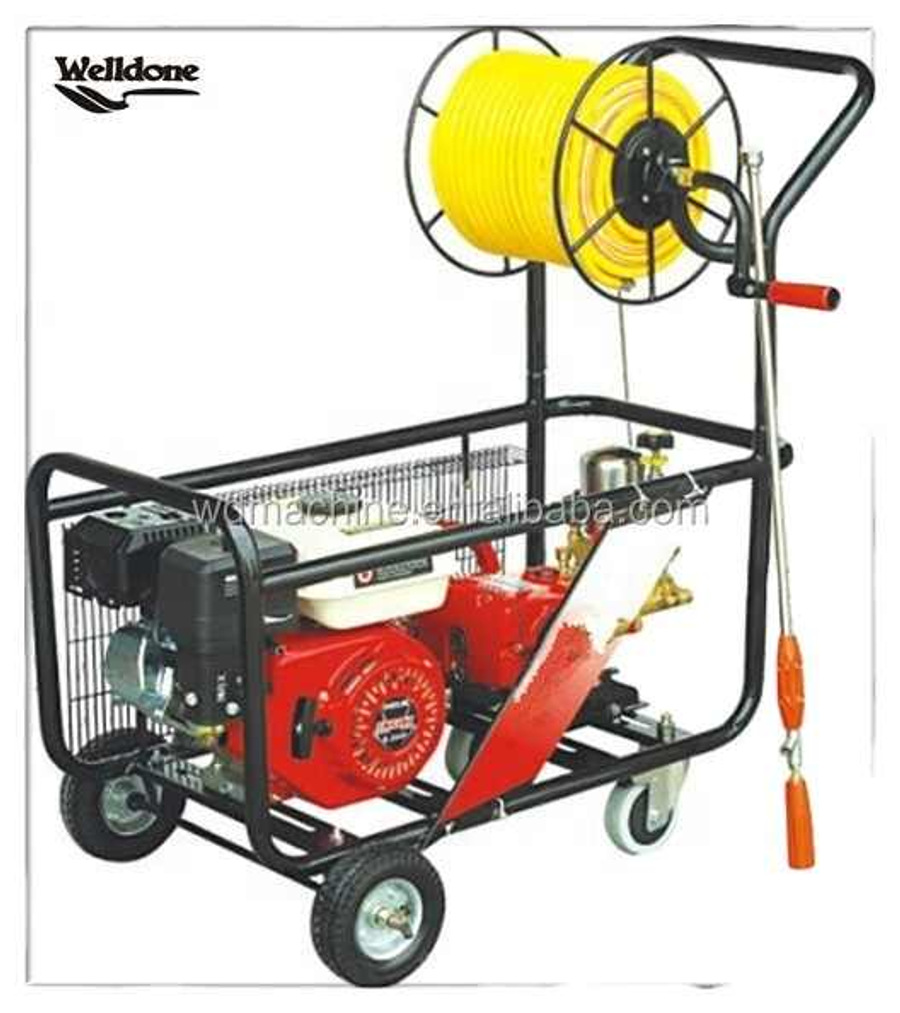

Frame with stretcher Power Sprayer Pump

Frame with stretcher Power Sprayer Pump1

Frame with stretcher Power Sprayer Pump

Product Code: 00527

1
Pcs

3 Pcs Left in Stock.

DETAILS SPECIFICATIONS:



pressure (Mpa)- 1.5mpa - 2.5mpa.

Output - 25-30.

Net Weight - 42kg.

Gross weight-43kg.

Dimension (mm) - 87*43*48.




Application:



Widely used in farmland , orchards , gardens , vegetable base rule controlling pests , water pumping , spray irrigation , etc. , can also be used in public places , such as cleaning and garbage site disinfection spray medicine .

1 Please check carefully before starting each of the fasteners are tightened to ensure that sprayer and motor are mounted on a tripod ;

2 Adjust the drive belt and two pulleys to a parallel state , elastic medium ;

3 Each locking tube connector to prevent leakage ;

4 Turn off the water before starting the motor switch , loosen the screw regulator , the regulator handle is pulled to the top ;

5 The starter motor drive unit to maintain an appropriate rotational speed , the pressure in the end and handle end of the regulator to adjust the pressure regulator to keep the wheel in between 1.0-3.0MPa , the switch opens the water spray began to work properly ;

6 Using the method according to the different needs and sprinklers , ibid method of adjusting to normal operating pressure.
